Five Heddle Weave Stainless Steel Wire Mesh SUS304/304L/316/316L with Rectanluar Opening in Filter Ribbons/Elements
1. Description:

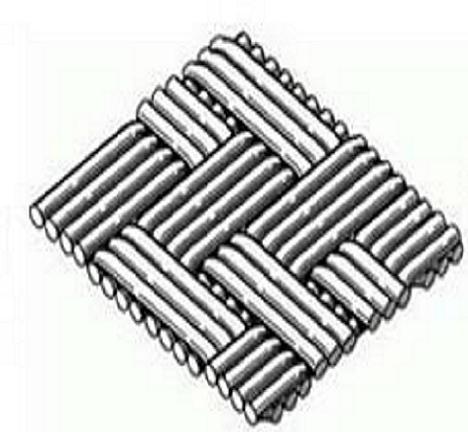

Five heddle weave provides a rectangular opening. The unique design of this mesh can assist increased drainage and flow properties. This mesh also has a smooth surface on one side, which is widely used in filtration of petroleum chemical industries, in the form of filter ribbons and filter elements.
2. Material:
The main materials of five heddle weave wire cloth is stainless steel wire SUS304, SUS304L, SUS316 and SUS316L.
3.Technical Parameter
1)All Stainless Steel Wire Mesh Weaving patterns:
2)Five Heddle Weave Stainless Steel Wire Mesh
4. Applications:
Five heddle weave offers high flow rates and is suitable for high mechanical loads, featuring a lightly structured mesh surface. Five-heddle woven meshes are popular in applications including pressure and vacuum filters as well as filter candles.
5. Specifications:
1)
| Mesh |
Wire |
Micro Retention |
Weight |
Thickness |
| Warp |
Weft |
Warp mm |
Weft mm |
abs. μm |
nom. μm |
kg/m2 |
mm |
| 132 |
85 |
0.140 |
0.200 |
0.09-0.11 |
0.052 |
1.47 |
0.44 |
| 107 |
132 |
0.160 |
0.140 |
0.055-0.065 |
0.055 |
1.30 |
0.44 |
| 107 |
125 |
0.160 |
0.140 |
0.065-008 |
0.070 |
1.27 |
0.45 |
| 107 |
59 |
0.160 |
0.160 |
0.16-0.18 |
0..77 |
1.09 |
0.45 |
2)
| Mesh |
Wire |
Micro Retention |
Weight |
Thickness |
| Warp |
Weft |
Warp mm |
Weft mm |
abs. μm |
nom. μm |
kg/m2 |
mm |
| 80 |
60 |
0.200 |
0.200 |
0.20-0.22 |
0.127 |
1.40 |
0.55 |
| 77 |
40 |
0.240 |
0.240 |
0.38-0.40 |
0.095 |
1.65 |
0.68 |
| 65 |
36 |
0.300 |
0.300 |
0.26-0.29 |
0.100 |
2.27 |
0.84 |
| 55 |
36 |
0.300 |
0.300 |
.025-.028 |
0.175 |
2.05 |
0.84 |
3)
| Mesh |
Wire |
Micro Retention |
Weight |
Thickness |
| Warp |
Weft |
Warp mm |
Weft mm |
abs. μm |
nom. μm |
kg/m2 |
mm |
| 48 |
45 |
0.400 |
0.400 |
0.17-0.21 |
0.130 |
3.79 |
1.11 |
| 48 |
45 |
0.290 |
0.290 |
0.24-0.26 |
0.230 |
2.00 |
0.83 |
| 48 |
25 |
0.300 |
0.300 |
0.46-0.50 |
0.250 |
1.64 |
0.82 |
4)
| Mesh |
Wire |
Micro Retention |
Weight |
Thickness |
| Warp |
Weft |
Warp mm |
Weft mm |
abs. μm |
nom. μm |
kg/m2 |
mm |
| 30 |
18 |
0.500 |
0.500 |
0.60-0.65 |
0.370 |
3.00 |
1.48 |
| 28 |
17 |
0.470 |
0.470 |
0.75-0.80 |
0.460 |
2.53 |
1.41 |
| 24 |
20 |
0.600 |
0.600 |
0.65-0.75 |
0.490 |
3.96 |
1.70 |
| 15 |
13 |
0.900 |
0.900 |
1.15-1.20 |
0.850 |
5.67 |
2.60 |
Width of woven wire cloth: 180+0/-2mm
Weaving type: 5-heddle weave
Standard width of stainless steel wire mesh: 1m or 48"
Standard roll length of stainless steel wire mesh: 30m or 100'.
6. Process
7. Packaging:
wrapped with moister-proof paper, then in wooden cases.
